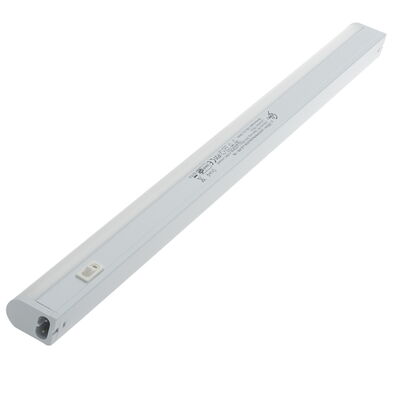

LED under-cabinet luminaire "LLG-401-L22-CCT-M" 22W colour changing
Prices after loginFor registered business customers only. No dealer account yet? Request one now
Skip to product information
LED under-cabinet luminaire "LLG-401-L22-CCT-M" 22W colour changing
Prices after loginFor registered business customers only. No dealer account yet? Request one now
Item no.: 3008040122-M | EAN: 4022208064529
Technical data
| Colour | White |
|---|---|
| Version | 1,8m with mains plug |
| Swivelling | No |

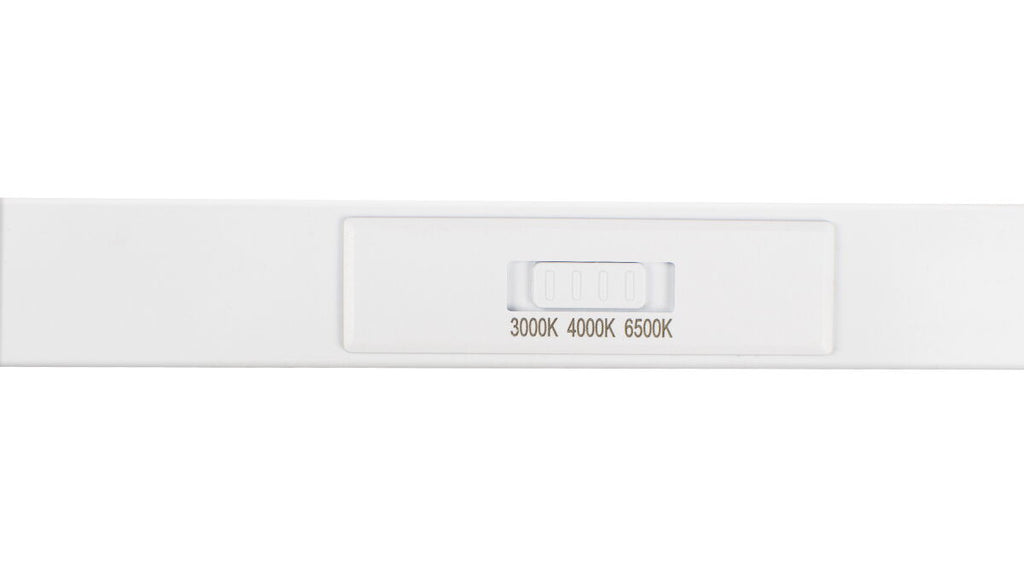

| Switch / sensor | Yes (rocker switch/colour slider) |
| Dimmable | Yes |
| Expandable | Yes (up to 8 luminaires) |
| Luminaire material | Plastic |
| Protection class | II |
| IP rating | IP20 |
| Length | 1438mm |
| Width | 22,8mm |
| Surface height | 36mm |
| Country of origin | PR China |
| HS code | 9405 1140 |
| Rated power | 22W |
| Rated voltage | 220-240V |
| Operating current | 50/60Hz |
| Light colour | Warm white/neutral white/cool white |
| Colour temperature | 3000/4000/6500K |
| Colour code | CCT |
| Luminous flux | 2050 - 2450lm |
| Colour rendering index | 80Ra |
| Beam angle | 135° |
| LEDs | 100 pcs |
| LED type | 2835 SMD |
| Lifetime | 30000h |
| Switching cycles | 50000x |
| Start-up time in seconds | <0,5s |
| Energy efficiency class | F |
| Weighted energy consumption | 22kWh/1.000h |
Packaging & logistics
Carton
| Packaging unit (PU) | 20 pcs |
|---|---|
| Carton size (L × W × H) | on request |
| Gross weight carton | on request |
| Carton EAN | on request |
Individual packaging
| Packaging type | on request |
|---|---|
| Size (L × W × H) | on request |
| Weight | on request |
Please order in full packaging units where possible. Pallet and shipping details on request.
