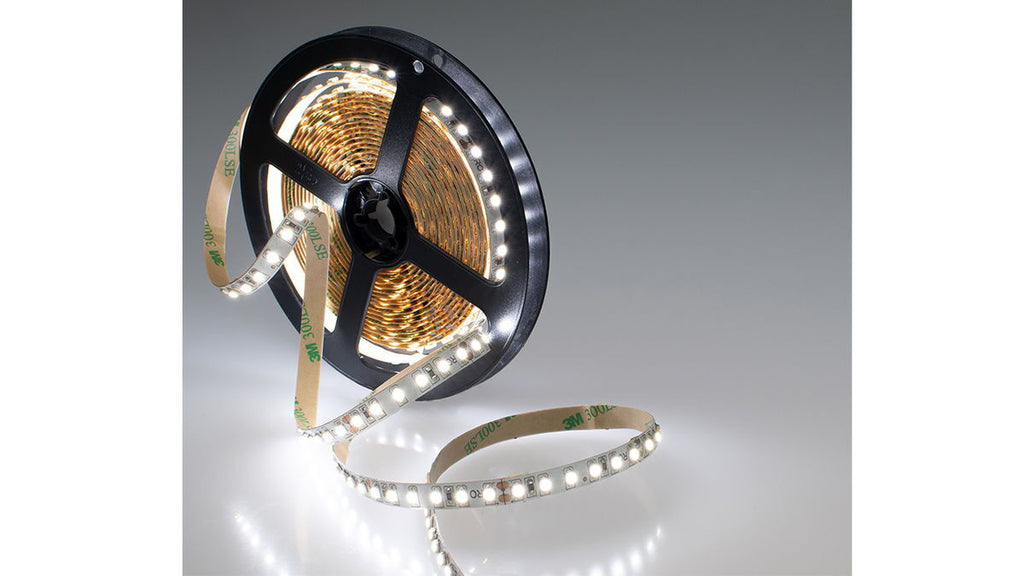

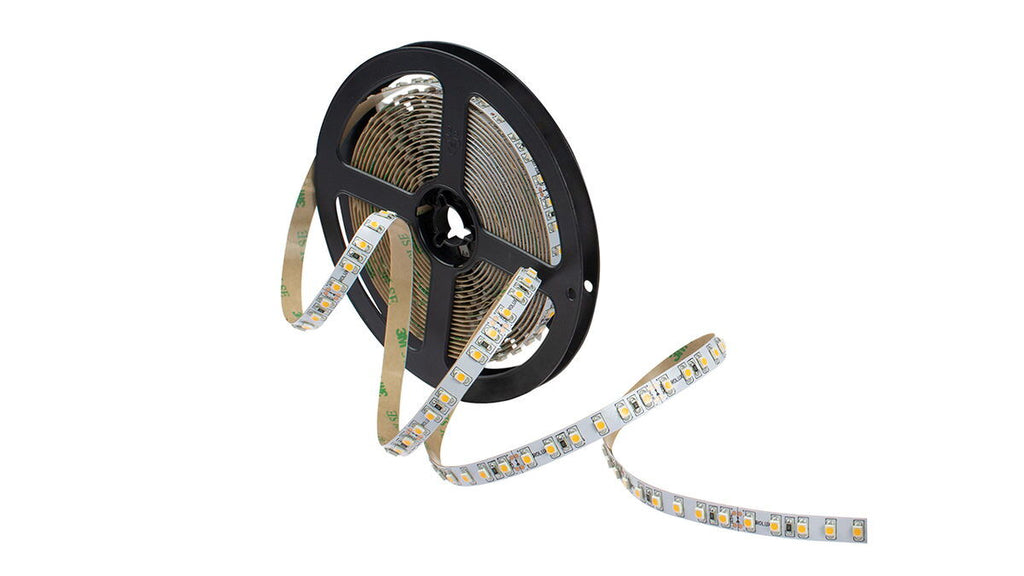

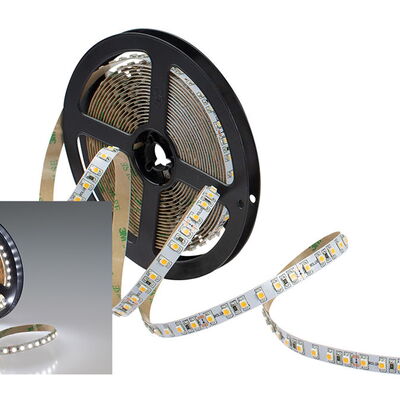

LED strip 9,6W/m 6000K
Prices after loginFor registered business customers only. No dealer account yet? Request one now
Item no.: 3528096600 | EAN: 4022208059297
Technical data
| Colour | White |
|---|---|
| Version | Incl. 150mm supply cable |
| Dimmable | Yes (PWM Dimmer) |
| Protection class | III |
| IP rating | IP20 |
| Length | 5000mm |
| Width | 8mm |
| Height | 2,5mm |
| Interfaces | 50mm |

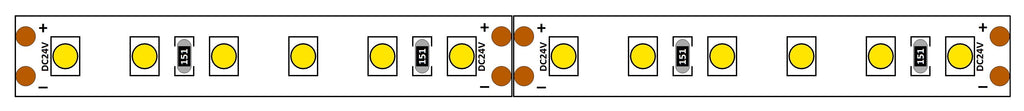

| SMD spacing | 8,5mm |
| Country of origin | PR China |
| HS code | 9405 1100 |
| Rated voltage | 24V DC |
| Rated power per metre | 9,6W |
| Rated power per segment | 0,48W |
| Light colour | Cool white |
| Colour temperature | 6000K |
| Colour code | CW |
| Luminous flux | Approx. 3900lm |
| Luminous flux per metre | Approx. 780lm |
| Colour rendering index | ≥ 80Ra |
| Beam angle | 120° |
| Lifetime at ta 30°C | 40000 |
| Operating temperature | -20 - 60°Cta |
| Weighted energy consumption | 48kWh/1.000h |
Packaging & logistics
Carton
| Packaging unit (PU) | 1 reel |
|---|---|
| Carton size (L × W × H) | on request |
| Gross weight carton | on request |
| Carton EAN | on request |
Individual packaging
| Packaging type | on request |
|---|---|
| Size (L × W × H) | on request |
| Weight | on request |
Please order in full packaging units where possible. Pallet and shipping details on request.
