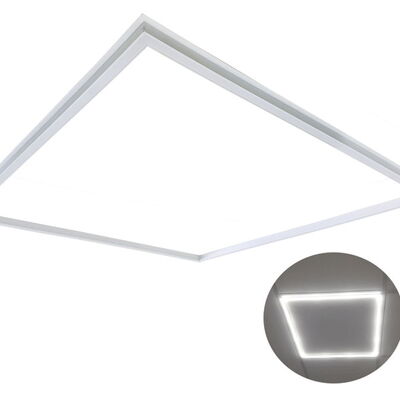

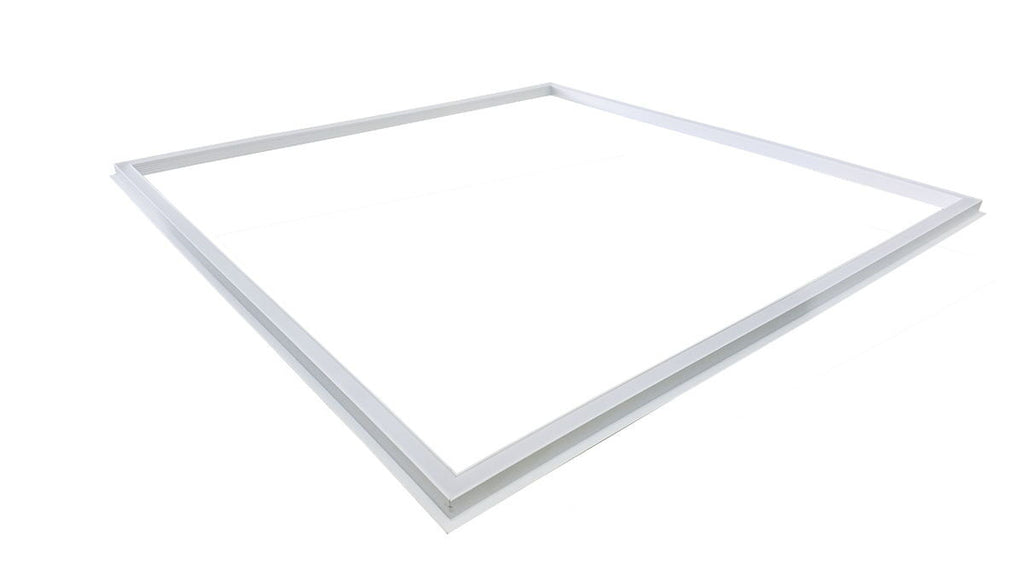

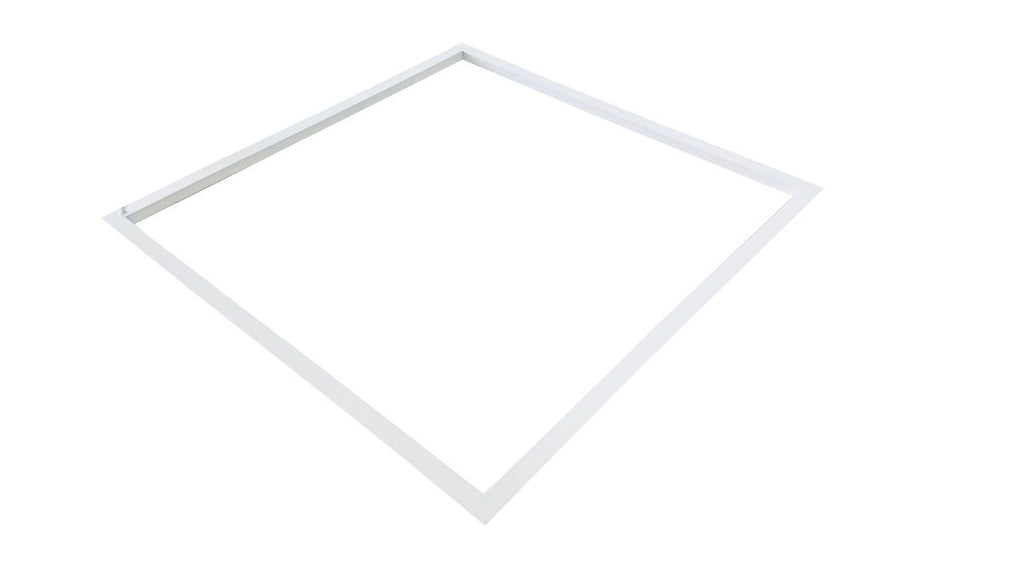

LED light frame "Frame" 4000K -DA
Prices after loginFor registered business customers only. No dealer account yet? Request one now
Item no.: 0180620417-DA | EAN: 4022208062174
Technical data
| Colour | White |
|---|---|
| Version | Incl. external LED driver (DALI) |
| Rotatable | No |
| Swivelling | No |
| Dimmable | Yes (DALI) |
| Luminaire material | Aluminium / plastic |
| Protection class | II |
| IP rating | IP20 |
| Length | 615mm |
| Width | 615mm |
| Height | 10mm |
| Country of origin | PR China |
| HS code | 9405 4200 |
| Rated power | 40W |
| Rated voltage | 220-240V AC |
| Mains frequency | 50/60Hz |
| Operating current | 950mA (CC) |
| Light colour | Neutral white |
| Colour temperature | 4000K |
| Colour code | NW |
| Luminous flux | 3200lm |
| Colour rendering index | ≥ 80Ra |
| Beam angle | 110° |
| Lifetime | 25000h |
| Switching cycles | 40000x |
| Start-up time in seconds | <0,5s |
| Weighted energy consumption | 40kWh/1.000h |
Packaging & logistics
Carton
| Packaging unit (PU) | 5 pcs |
|---|---|
| Carton size (L × W × H) | on request |
| Gross weight carton | on request |
| Carton EAN | on request |
Individual packaging
| Packaging type | on request |
|---|---|
| Size (L × W × H) | on request |
| Weight | on request |
Please order in full packaging units where possible. Pallet and shipping details on request.
