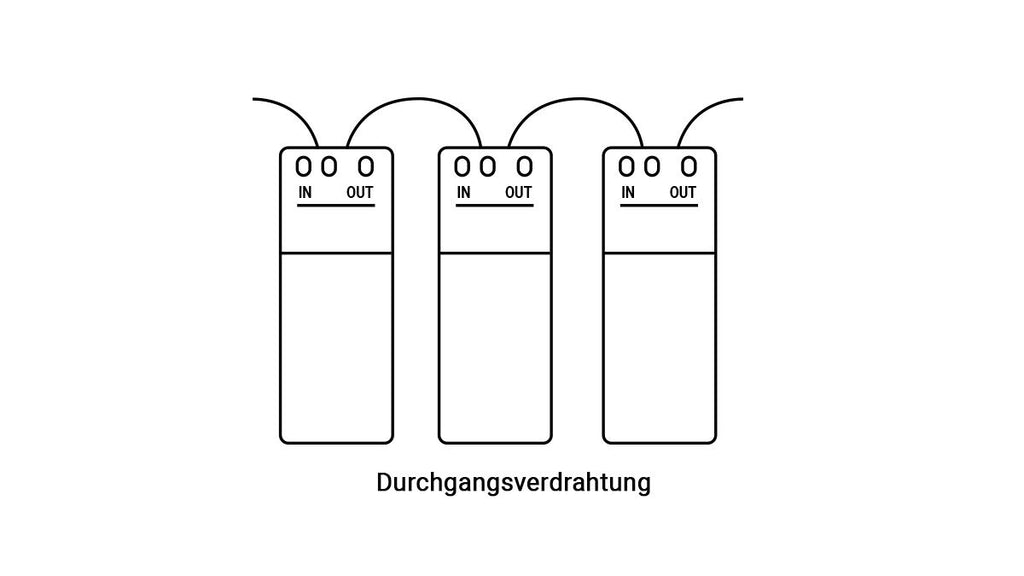

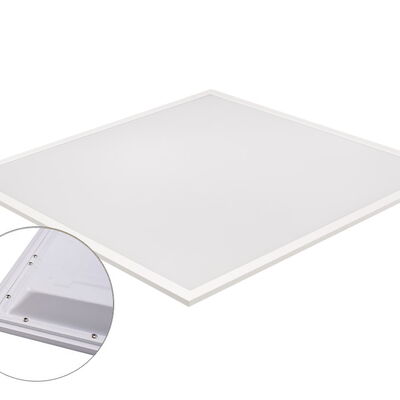

LED backlight panel panel "DF-620-36-ECO" 36W, 4000K, UGR <19, through-wired
Prices after loginFor registered business customers only. No dealer account yet? Request one now
Skip to product information
LED backlight panel panel "DF-620-36-ECO" 36W, 4000K, UGR <19, through-wired
Prices after loginFor registered business customers only. No dealer account yet? Request one now
Item no.: 0190620364
Technical data
| Colour | White |
|---|---|
| Rotatable | No |
| Swivelling | No |
| Dimmable | Yes (optional 1-10V/DALI) |
| Luminaire material | Aluminium, metal |
| Protection class | II |
| IP rating | IP20 |
| Length | 620mm |
| Width | 620mm |
| Height | 32mm |
| Country of origin | PR China |
| HS code | 9405 4200 |
| Rated power | 36W |
| Rated voltage | 220-240V AC |
| Operating current | 1000mA |
| Light colour | Neutral white |
| Colour temperature | 4000K |
| Colour code | NW |
| Luminous flux | 3600lm |
| Colour rendering index | ≥ 80Ra |
| Beam angle | 90° |
| Lifetime | 50000h |
| Energy efficiency class | E |
| Weighted energy consumption | 36kWh/1.000h |
Packaging & logistics
Carton
| Packaging unit (PU) | on request |
|---|---|
| Carton size (L × W × H) | on request |
| Gross weight carton | on request |
| Carton EAN | on request |
Individual packaging
| Packaging type | on request |
|---|---|
| Size (L × W × H) | on request |
| Weight | on request |
Please order in full packaging units where possible. Pallet and shipping details on request.
